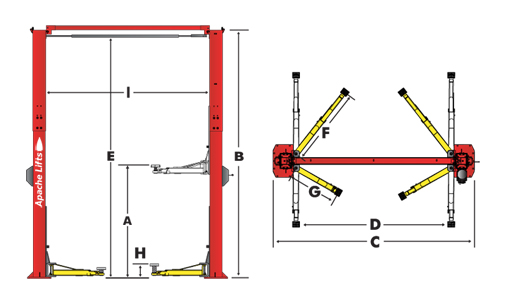

TS12 Two Post Lift Specifications
Model Number |
TS12 |
|---|---|
Lift Capacity* |
12,000 lbs. (5443kg) |
A Rise Height |
78–1/8" (1984mm) |
B Adj. Column Height |
13′ 10 or 14″ 7" (4216mm or 4445mm) |
C Overall Width |
11' 7-3/4" (3550mm) |
D Drive-Thru Clearance |
103" (2616mm) |
E Floor to Overhead Switch |
13' 3-1/2" or 14' 1/2" (4051mm or 4280mm) |
F Arm Reach (Min.) |
35-3/4" (910mm) |
G Arm Reach (Max.) |
54-1/2" (1386mm) |
H Adj. Screw Pad Height |
5-1/4" / 7-1/4" (133mm / 184mm) |
Adj. Adapter Height (with 3" Extensions & Screw Pad) |
8-1/4" / 10-1/4" (210mm - 260mm) |
Adj. Adapter Height (with 6" Extensions & Screw Pad) |
11-1/4" / 13-1/4" (286mm - 337mm) |
I Inside of Columns |
115" (2921mm) |
Motor |
2HP, Single Phase, 60Hz |
Voltage |
208v - 230v |
Speed of Rise |
66 seconds |
Max. Load per Arm |
3,000 lbs. (1361kg) |
Ceiling Height Required (min / max) |
13' 11" or 14' 8" (4242mm or 4470mm) |
Shipping Weight |
2000 lbs. (907 kg) |
*Lift capacity ratings are based on loads equally distributed on all four arms.
Frame engaging adapters (10314 or 10318) are REQUIRED when lifting vehicles with frame construction.
