AP4-15 Four Post Lift Specifications
|
Open Front |
Closed Front |
||||||
---|---|---|---|---|---|---|---|---|
Alignment Rack Package |
Flat Deck |
Alignment Rack Package |
Flat Deck |
|||||
Model Number |
AR4015EAO | AR4015XAO |
4015EFO |
4015XFO | AR4015EAX | AR4015XAX | 4015EFX | 4015XFX |
Lift Capacity |
15,000 lbs. |
15,000 lbs. |
||||||

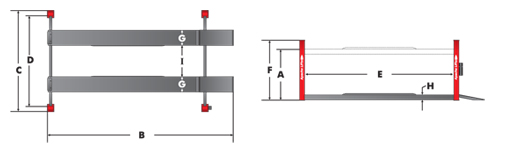

A Length Overall |
20' 9" (6325mm) |
23' (7010mm) |
20' 9" (6325mm) |
23' (7010mm) |
20' 4-1/2" (6210mm) |
22' 8" (6909mm) |
20' 4-1/2" (6210mm) |
22' 8" (6909mm) |
B Width Overall |
11' 10" front - 11' 2-1/2"rear (3607mm front - 3416mm rear) |
11' 2-1/2" (3416mm) |
||||||
CInside Columns |
120" front - 120" rear (3048mm front - 3048mm rear) |
120" (3048mm) | ||||||
D Between Columns |
195" (4953mm) |
222 1/2" (5652mm) |
195" (4953mm) |
222 1/2" (5652mm) |
196" (4978mm) |
223 1/2" (5677mm) |
196" (4978mm) |
223 1/2" (5677mm) |
E Height of Columns |
8' 3-1/2" front - 7' 9-1/2"rear (2527mm front - 2375mm rear) |
7' 6-1/2" (2299mm) | ||||||
F Height of Runways |
7" (178mm) |
7" (178mm) |
||||||
G Width of Runways |
20" (508mm) |
20" (508mm) |
||||||
H Width between Runways (Minimum / Maximum) |
43" (1092mm) |
40" / 43" (1016mm / 1092mm) |
||||||
I Maximum Wheelbase1 |
182 1/2" (4635mm) |
210" (5334mm) |
182 1/2" (4635mm) |
210" (5334mm) |
182 1/2" (4635mm) |
210" (5334mm) |
182 1/2" (4635mm) |
210" (5334mm) |
J Rise Height |
78" (1981mm) |
78" (1981mm) |
||||||
Max. 2 Wheel Alignment |
166 1/2" (4229mm)
| 194" (4927mm)
| N/A |
166 1/2" (4229mm)
| 194" (4927mm)
| N/A |
||
4 Wheel Alignment |
88" - 158" (2235mm - 4013mm) |
N/A |
88" - 158" (2235mm - 4013mm) |
N/A |
||||
Air Supply Required |
90 -120 psi Clean & Dry |
90 -120 psi Clean & Dry |
||||||
Motor |
2HP |
2HP |
||||||
Voltage (1 Phase Std.)2 |
208v - 230v |
208v - 230v |
||||||
Speed of Rise |
85 seconds |
85 seconds |
||||||
Min. Recomm. Bay Size |
12´ x 24" |
12´ x 26" |
12´ x 24" |
12´ x 26" |
12´ x 24" |
12´ x 26" |
12´ x 24" |
12´ x 26" |
Shipping Weights |
4800 lbs. (2177 kg) |
4950 lbs. (2245 kg) |
3980 lbs. (1805 kg) |
4160 lbs. (1887 kg) |
4400 lbs. (1996 kg) |
4600 lbs. (2087 kg) |
3610 lbs. (1637 kg) |
3790 lbs. (1719 kg) |
1 Maximum wheelbase is based on a tire diameter of 30".
2 Optional 3 phase electrical also available.
Standard Lift colors are Red and Blue. Optional colors available.
