AP4-14 Four Post Lift Specifications
Model Number |
AP4-14S | AP4-14E |
|---|---|---|
Lift Capacity* |
14,000 lbs. (5443kg) |
|
Max. Wheelbase1 |
182-1/2" (4636mm) |
210" (5334mm) |

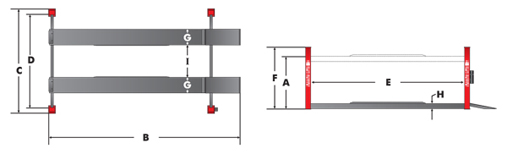

A Rise Height |
78" (1981mm) |
|
B Length Overall |
20' 5-3/4" (6242mm) |
22' 9-1/4" (6940mm) |
C Width Overall |
10' 10-3/4" (3321mm) |
|
D Inside Columns |
116" (2946mm) |
|
E Between Columns |
196" (4978mm) |
223-1/2" (5677mm) |
FHeight of Columns |
90-1/2" (2299mm) |
|
G Width of Runways |
20" (508mm) |
|
H Height of Runways |
7-1/4" (184mm) |
|
I Width Between Runways |
Min. 40" / Max. 43" (1016mm / 1092mm) |
|
Air Supply Required |
85 -115 psi |
|
Motor |
2HP |
|
Voltage2 |
208v - 230v |
|
Speed of Rise |
90 seconds |
|
Min. Recommended Bay Size |
12' x 24' (3658mm x 7315mm) |
12' x 26' (3658mm x 7315mm) |
Shipping Weight |
2260 lbs. (1025 kg) |
2390 lbs. (1084 kg) |
1 Maximum wheelbase is based on a tire diameter of 30".
2 Optional 3 phase electrical also available.
Standard Lift colors are Red and Blue. Optional colors available.
