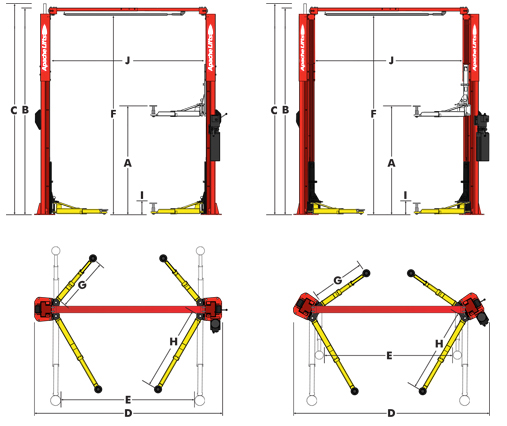

AP10TS Two Post Lift Specifications
Model Number |
AP10TS | |
|---|---|---|
| Symmetric Application | Asymmetric Application | |
Lift Capacity* |
10,000 lbs. (4536kg) |
|
A Rise Height1 |
74-1/2" (1892mm) |
|
B Column Height (min/max) |
11' 4-1/2" / 11' 10-1/2" (3467mm / 3620mm) |
|
C Overall Height (Cyliner Extended) |
11' 10-1/2" (3620mm) |
|
D Overall Base Width |
10' 9" / 11' 2" (2356mm / 2508mm) |
10' 11-1/2" / 11' 5-1/2" (3340mm / 3493mm) |
E Drive-Thru Clearance |
92-3/4" / 98-3/4" (2356mm / 2508mm) |
10' 11-1/2" / 11' 5-1/2" (2248mm / 2426mm) |
F Floor to Overhead Switch |
131-1/8" / 137-1/8' (3331mm / 2483mm) |
|
G Short Arm Reach |
22-3/8" / 41-1/2" (568mm / 1054mm) |
|
H Long Arm Reach |
38-1/4" / 59" (972mm / 1499mm) |
|
I Screw Pad Height2 (min/max) |
4-3/8" / 6-1/2" (111mm / 165mm) |
|
J Inside of Columns |
106-3/4" / 112-3/4" (2711mm / 2864mm) |
101-1/2" / 107-1/2" (2578mm / 2731mm) |
Motor |
2HP, Single Phase, 60Hz |
|
Voltage |
208v - 230v |
|
Speed of Rise |
48 seconds |
|
Max. Load per Arm |
2,500 lbs. (1134kg) |
|
Ceiling Height Required3 (min / max) |
12' (3658mm) |
|
*Lift capacity ratings are based on loads equally distributed on all four arms. 1 Rise Height is measured with telescoping screw pads in highest position. 2 Specifications are listed without rubber pad, for measurements with rubber pad add 1/4" (6mm)
Optional frame engaging adapters (10314 or 10318) are REQUIRED when lifting vehicles with frame construction.
